مكان المنشأ:
الصين
اسم العلامة التجارية:
WENYAO
إصدار الشهادات:
CE ISO9001
رقم الموديل:
WYCS3-192
اتصل بنا
فيديو
فيديو
فيديو
فيديو

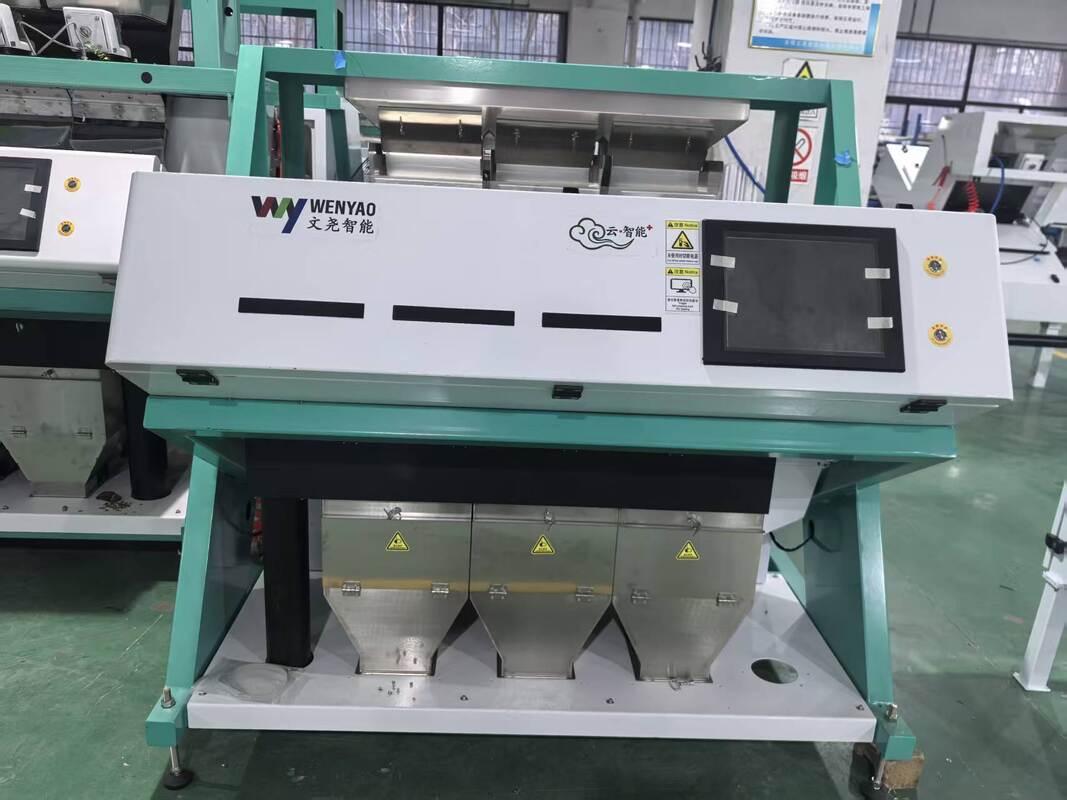

Wenyao 3 chute 192 channels High Pixels Grain Colour Sorter For Wheat Barley Color Sorting Machine
Technical Parameters:
| MODEL | WYCS3-192 |
| Chutes/Channels | 3-192 |
| Throughput(t/h) | 500 kg /H |
| Sorting Aaccuracy | ≥99.99% |
| Power | 1600w |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | 800-1800 L/Min |
| Weight | 600kg |
| Dimension(L*W*H) | 1620*1535*1832mm |
Examples of color sorting:
Feature:
· High level AI self-learning function,one-key automation,user friendly interface,easy operation
· Multi-function,multi-purpose,widely used for coffee bean,rice,grain ,walnuts,almond,plastic,chinese herbals etc.
· Combined with color sorting,shape sorting and size sorting,to sort difficult impurities like micro color difference,tiny bad spot etc.
· Latest UHD imaging and analysis technology,high-speed processing,accurate identification.
· High end specification ensures high stability with high sorting accuracy, small carry over and low energy consumption.
The system operates on the following principle:
1. Feeding & Alignment: Bulk pepper seeds are elevated and fed onto a vibrating chute or belt, which spreads them into a single, uniform layer to ensure each seed can be individually inspected.
2. Optical Scanning: The aligned seeds free-fall past a high-resolution, high-speed optical scanning chamber. This chamber is equipped with:
· Full-Spectrum LED Lights: Provide consistent, glare-free illumination to highlight color differences.
· Advanced CCD/CMOS Cameras: Capture detailed images of each seed from multiple angles.
3. Real-Time Data Processing: A sophisticated computer processing unit analyzes the captured images in milliseconds. It compares the color, shape, and sometimes spectral characteristics of each seed against user-defined acceptance parameters. Seeds that are discolored, moldy, immature, or mechanically damaged are identified as rejects.
4. Precision Ejection: Upon identification, the system sends a signal to an array of high-speed, solenoid-controlled air jets. These jets emit a precise puff of compressed air to knock the defective seed out of the product stream without physically touching it.
5. Separation & Collection: The ejected defective seeds are diverted into a reject channel, while the accepted, high-quality pepper seeds continue their natural trajectory into the "good product" collection hopper.
