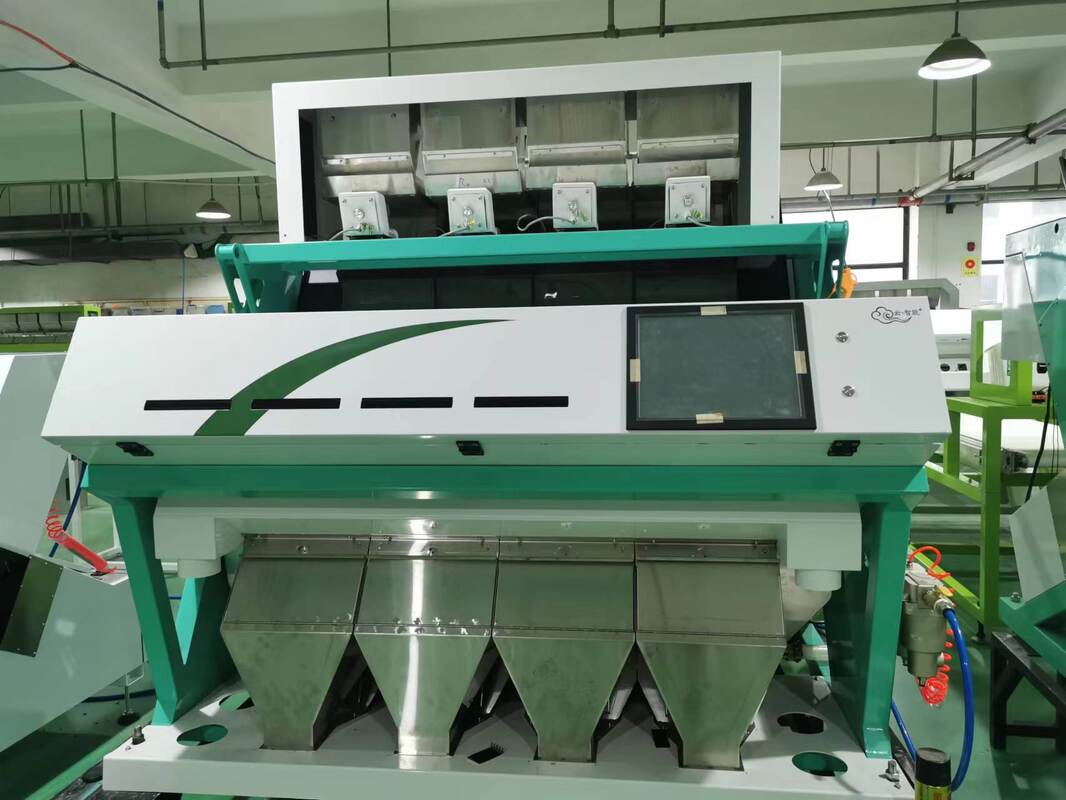

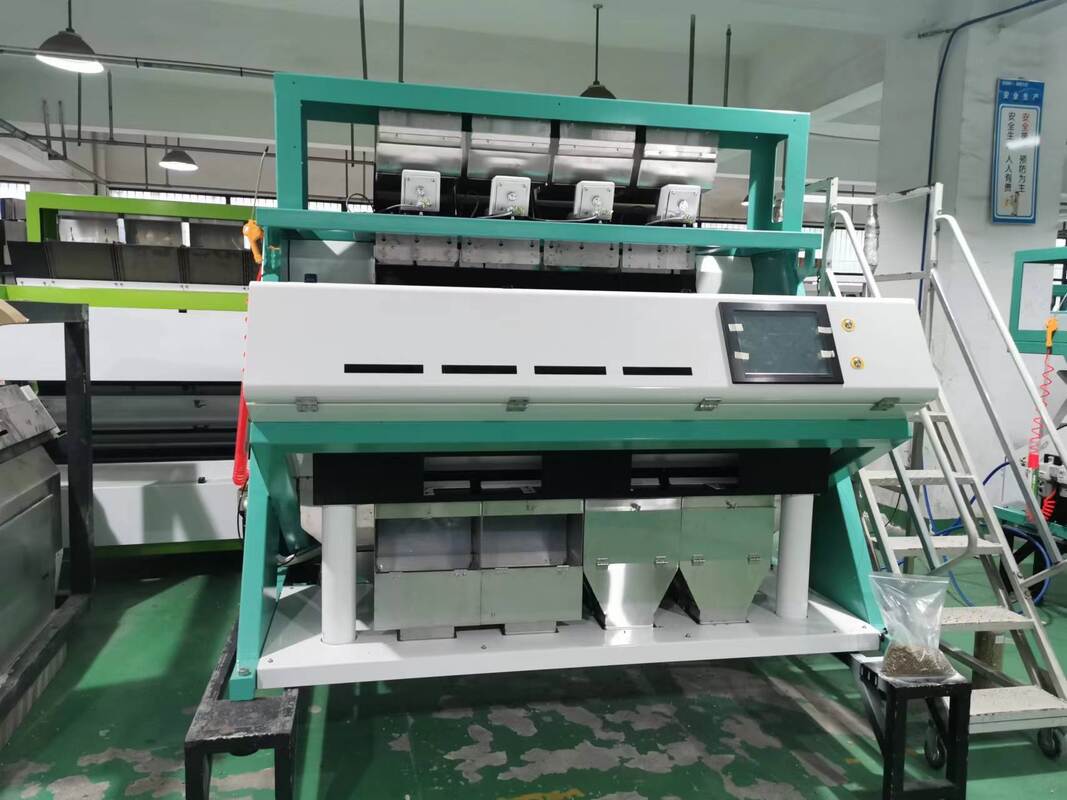

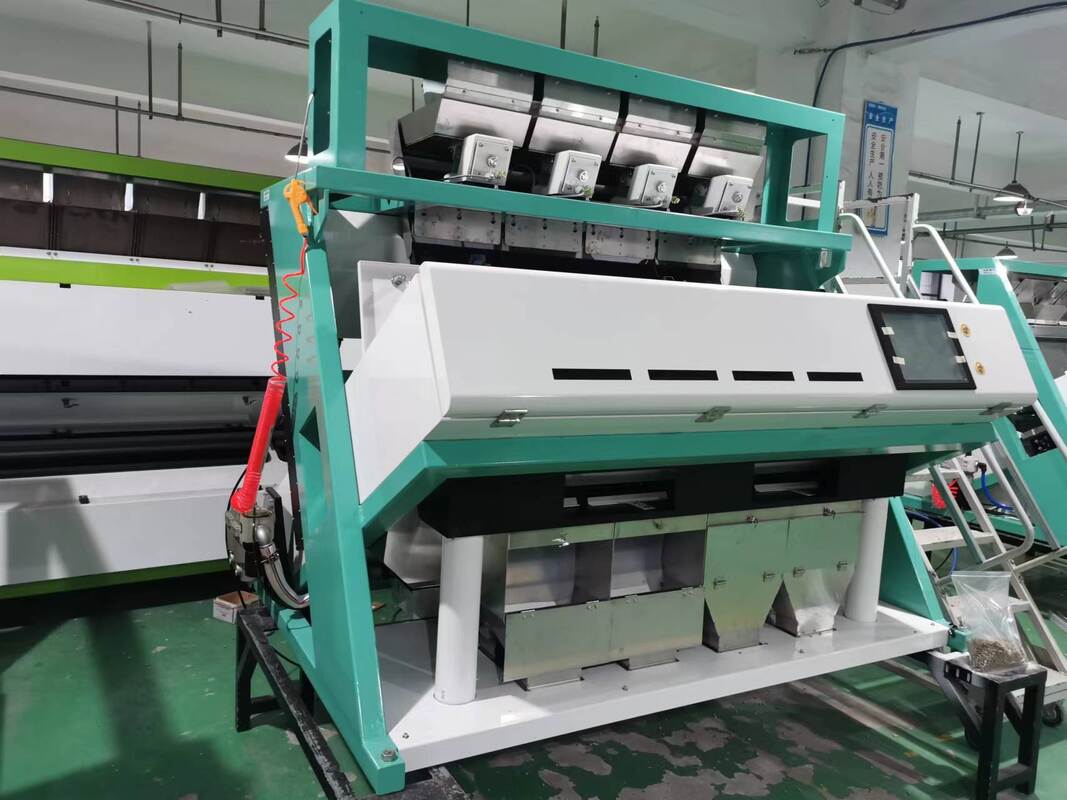

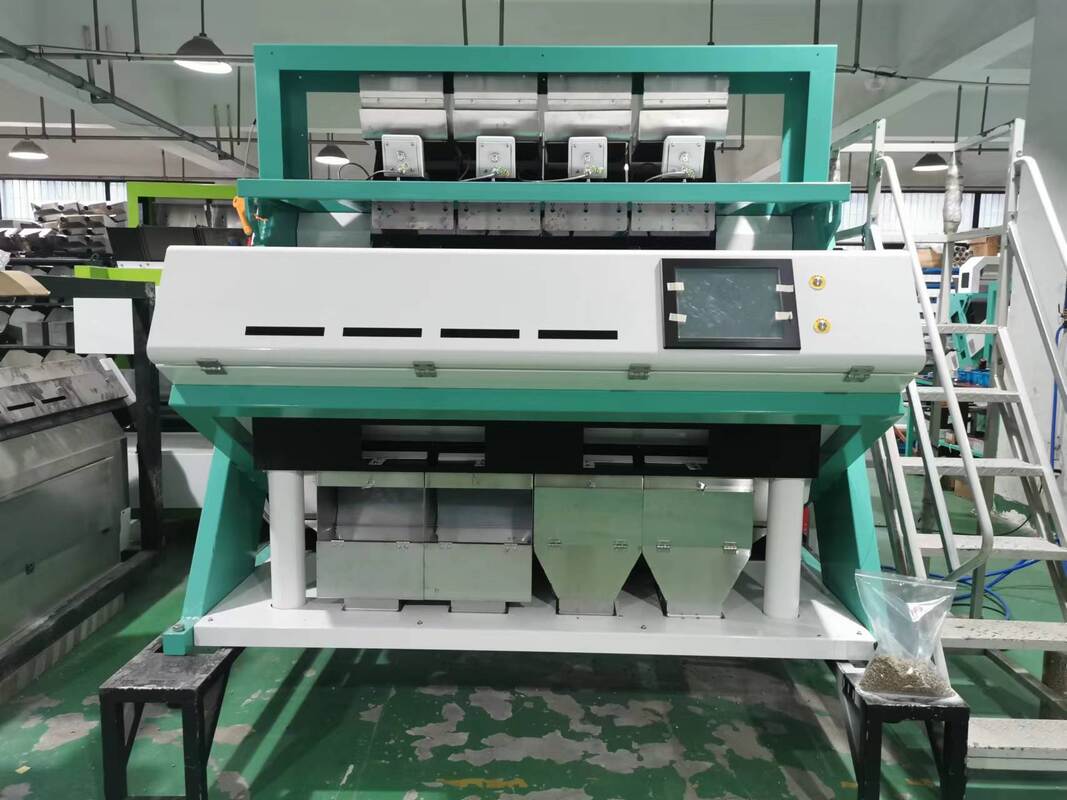

Wenyao Pistachio Nut Colour Sorting Machine Peanut Groundnut Optical Color Sorter

Wenyao Pistachio Nut Colour Sorting Machine Peanut Groundnut Optical Color Sorter

Technical Parameters:

INTELLIGENT OPERATION SYSTEM

Overall Large Screen HD Operation control panel, 1080P Super high resolution,system more stable, more friendly Human-Machine-Interface panel, which gives high sensitivity instant fast repones in the industrial environment.

NEWLY SPECIAL SUPER WIDTH CHUTE DESIGN

Special technology chutes, applicable for universal materials,make the transfer more steady, more capacity.

MECHNICAL RECONSTRUCTION

Reconstrution of the mechnical frame, the main part with special material,balancing whole frame bearing, ensure the machine integrity. Working with the updated mechanism, it strength the base of the ultra-sorting.

SELF-DEVELOPED SPRAY VALVE

Self-developed spray valve, Self-developed high-performance spray valve, super high rapid response to the Algorithm results. It can continuously working 12billion+ times, extremely long life, with low air consumption,master the core technology.

ILLIMITABLE SORTING POSSIBILITIES, START BY “ONE BUTTON” PRESSURING

Hundred of sorting profiles can be saved in machine machine, for the variety products for sorting, subdivide the quality of agric and sideline products illimitable sorting possibilities,“one button”start, “one button”profiles exchange.

SHADOWLESS COLD LIGHT SOURCE,AUTOMATICA ADJUSTABLE

Extremely long life, low energy consumption intellligent shadowless cold light source, orthogonal spectrum technology, make the image more visiable, more accuracy detection; the output luminance of light source are automatically adjustable, it make the lights more stable with high quality. It is fully appliable for the camera to see and detect.

Color sorter Principle as shown:

Color sorter at work,Feed hopper in the material under the action of vibrator is uniform distribution in each chute,The CCD signal of the whereabouts of the material in testing,If it is found that there are unqualified material or impurities in the material,The startup ejector to blow the defective goods in the hopper.(Above only for the working process of the diagram,The actual material shall prevail.)

The system operates on the following principle:

1. Feeding & Alignment: Bulk material are elevated and fed onto a vibrating chute or belt, which spreads them into a single, uniform layer to ensure each seed can be individually inspected.

2. Optical Scanning: The aligned material free-fall past a high-resolution, high-speed optical scanning chamber. This chamber is equipped with:

· Full-Spectrum LED Lights: Provide consistent, glare-free illumination to highlight color differences.

· Advanced CCD/CMOS Cameras: Capture detailed images of each material from multiple angles.

3. Real-Time Data Processing: A sophisticated computer processing unit analyzes the captured images in milliseconds. It compares the color, shape, and sometimes spectral characteristics of each material against user-defined acceptance parameters. Material that are discolored, moldy, immature, or mechanically damaged are identified as rejects.

4. Precision Ejection: Upon identification, the system sends a signal to an array of high-speed, solenoid-controlled air jets. These jets emit a precise puff of compressed air to knock the defective seed out of the product stream without physically touching it.

5. Separation & Collection: The ejected defective material are diverted into a reject channel, while the accepted, high-quality material continue their natural trajectory into the "good product" collection hopper.

Advantage:

Why Choose Wenyao Color Sorter?

1. Over 20 years experience which focus on sorter machine. One of the most advanced manufacturer in Hefei, Anhui.

2. After-Sales service guarantee: We have a professional after sales service team, one-to-one customer service to help customers install and debug.

3. We have service station over Southeast Asia, co-operate re-seller in more than 100 countries.

4. Quality assurance of raw materials: the raw material we purchase are certified qualified products.

5. Quality process assurance: We have been authorized by CE & ISO quality management system, each process of production are under strictly standard.

6. System test: Our technical engineers check the product performance, even every part is subjected to rigorous aging test to ensure that the factory products would being in full compliance with customer requirements.

7. Shipping guarantee: We have professional packaging operation team, independent export qualification to ensure product safety and stability to reach customers in the hands.

Customer's Site :
