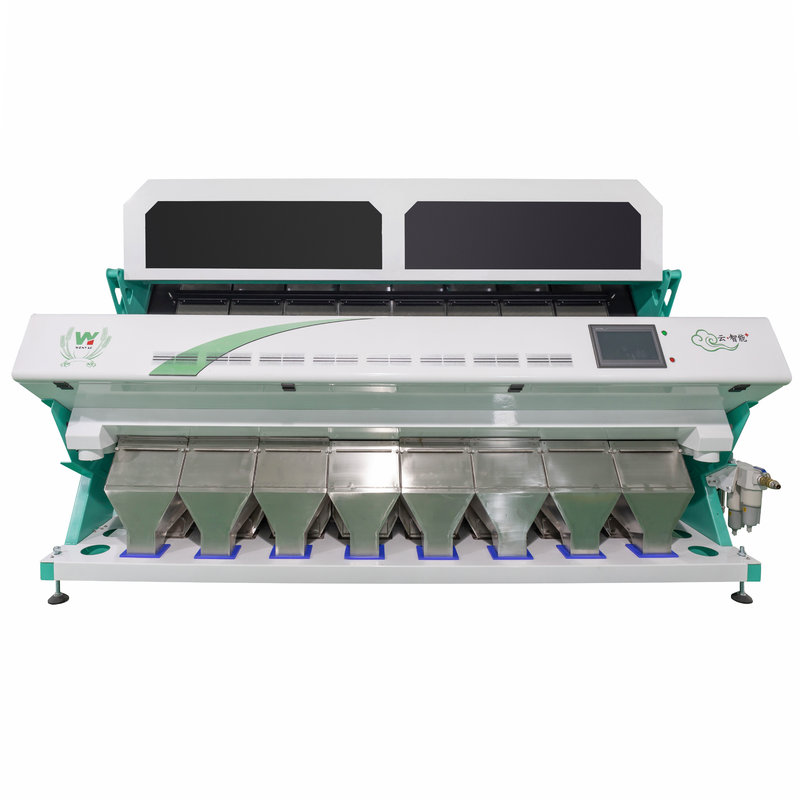

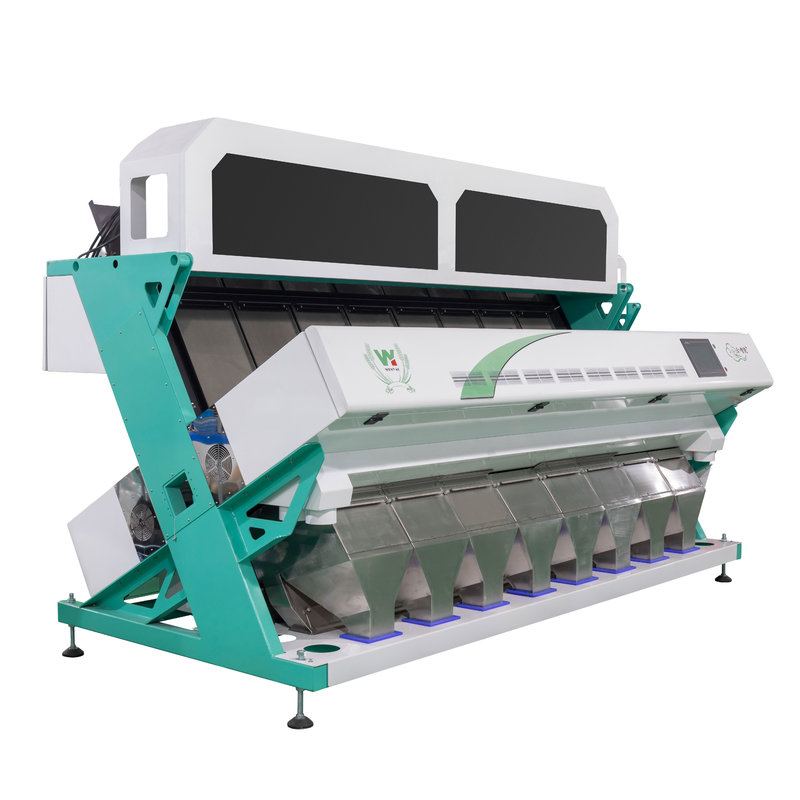

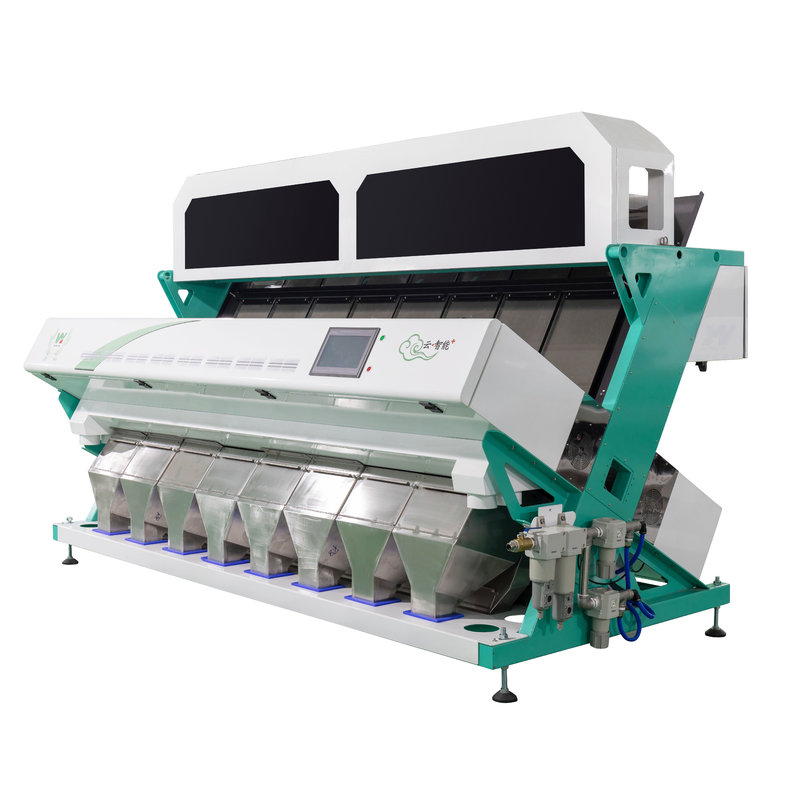

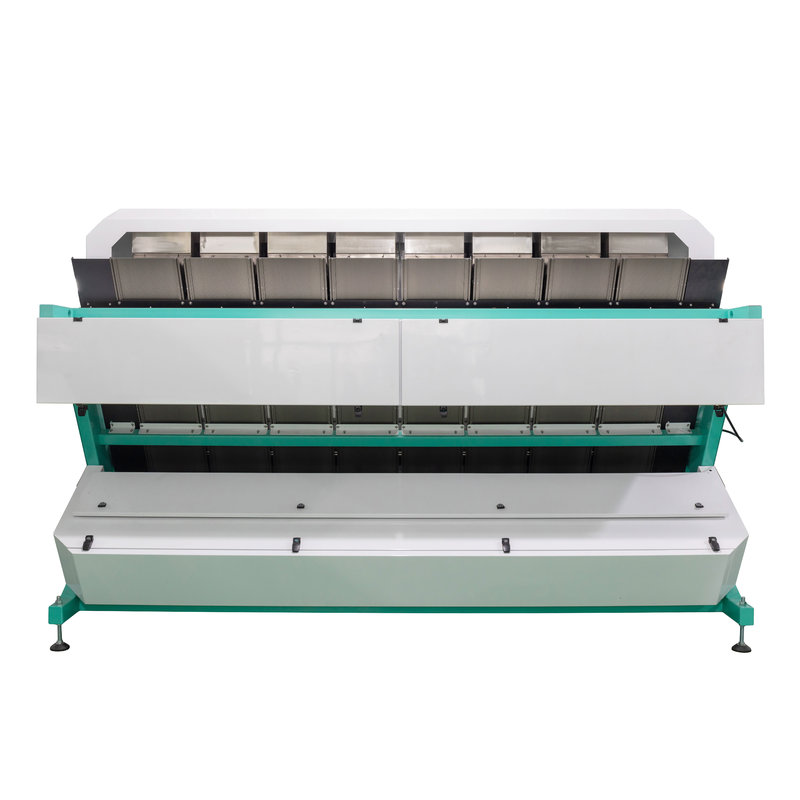

Seeds Optical Sorting Machine Vegetable Tomato Sesame Seed Color Sorter Separator Machine

Seeds Optical Sorting Machine Vegetable Tomato Sesame Seed Color Sorter Separator Machine

1. WENYAO  Colour Sorter Machine Working Pricinple

Raw materials are put into the machine from its material hopper on the top, vibrated by vibratiory feeder and sliding along material chute into the zone of observation in sorting chamber through sensors and background plate. Under the effect of lamps source, CCD sensor receives compound light from materials being sorted. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve(ejector) to work, ejecting the discolor grain to reject chamber and good materials continue to fall into the finished accept chamber

2. Technical Parameters:

3. Machine Features:

Features:
1. Most advanced RGB cameras with 5400 pixels linear industry CCD sensor .
2. America FPGA processing chip.
3. Japan Toshiba CCD sensor.
4. Metal ejectors/valves with more than one billion lifetime
5. Lens:Japan Nikon Lens .
6. Filter: Japan CKD filter
7. Power source:Taiwan Meanwell
8. All LED light source,more longer lifetime and save power
9. Flexem Humanized touch screen
10. WIFI remote control system,help end user to debug and monitor machine situation in chinese factory during covid-19 period,Supply non-contactness after service

4. Examples of Color Sorting Examples

How to get the correct size and suitable price of wenyao color sorter machine?

Step 1. Which kinds of the material do you want to sort ?

Step 2. How much input capacity for the raw materials per hour?

Step 3. In order to know the impurity rate of the raw materials which are needed to be sorted, please send us 3 pictures as following:
1. Raw material picture(feeding in the machine materials)
2. Accepted material picture(you want to save the good materials)
3. Rejected material picture(you want to sort out the bad materials)

5. Our Service:

A: For software:We have installed WIFI remote control system on machine,Once machine arrived in your local we will connect with machine touch screen provide technical assistance from Chinese factory.

B:For hardware:We will supply you the spare parts ship together with machine,In case you face hardware problems,we will guide you how to repair by live videos.

6.Packing and Delivery:

Packaging Details:
Our products use professional wooden cases with PE plastic bag.
Package size will depend on each model size.

Delivery Detail:
Within 15 - 20 days after received deposit.

7.FAQ

1. How to use the machine?
We will supply the Installation instructions or video and our engineers will train your operators.

2. How long about the guarantee period?two year. And we supply lifelong software upgrade services for our customers.

3. Can you supply the air compressor, air tank and air filters?
Yes, we can provide above equipments, our standard offer includes color sorter machine with air compressor, air tank and filters.

4. Is oversea service available?
Yes, our engineers could go abroad when required.

5. How to calculate Installation personnel cost?
On condition that customer requires to install, our company would like to send 1 Engineer to guide for installation, then customer should to pay the cost, including transaction of Engineer's visa, transportation(air) for go abroad. and accommodation , local transportation and security when the Engineer arrived.

Intelligent elimination: Self-collaborative sensing technology; Central position elimination technology; High end customized valves.

Intelligent Holographic Flash Camera Compatible with CMOS or CCD image sensors

Flexible switch between visible lens or infrared lens35K high-speed imaging +350 million pixel ultra-clear resolution

LED light source

Flexible Light Source Configuration: For different raw

material, the Color LED illumination system can choose use different spectrum for the illumination to increase the contrast and increase the precision of information

acquisition. The LED illumination system has the cooling system, so the system has the long lifetime, low energy consumption and high performance.

Dedicated Image Processing Algorithm According to the characteristics of material, use the shape and color combination algorithm; For materials with

complex colors, the machine sorts materials more directly and accurately by using HSV-changed color space sorting method.

High-Quality Solenoid Valve

Use High-quality,high-frequency,long service life ejecter, super low air consumption guaranteed the biggest capacity, excellent rejection output. For the different sizes and

characteristics of material particle, use the solenoid valve of different sizes.

Simple Operation

Simple optical system design, precise automatic correction system, combined with the well-designed human-

machine interface to simplify the complexity of machine commissioning and use, ensuring the simple operation and the machine is easy to learn and use.

Color Sorters are machines used on the production lines in bulk food processing and other industries.They sort materials by their colors or shapes, If it is found that there are unqualified materials or impurities in the materials, the ejector will blow out the rejects in the hopper.

In color sorting stage, the grain pile comes into the hopper, from there it goes into the vibrating feeder. The vibratory feeders spread and leveled the grain to a single-layer flow.Two CCD cameras are installed at the two sides of the control area. The single-stream from e.g. Cereal is scanned by the cameras. The data of the video cameras are used in the arithmetic unit and are analyzed in real time. From the results of image analysis of the signals, an air flow pulse is generated by opening the
valves at the moment on the fly by the detected particle. The compressed air pulses with a pressure of(0.4 … 0.6 MPa), which is generated only for the duration of a few milliseconds, blowing the grain into the corresponding receiver module.

optic sorters can recognize objects' color, size and shape, can compare objects to user-defined accept/reject criteria to identify and remove defective products and foreign material from the production line, with the purpose of separating product of different grades and types of materials.

color sorters are commonly applied in sorting of grain, coffee, peanuts, crops, beans, seeds, spices, nuts, rice, vegetables, fruits etc.
