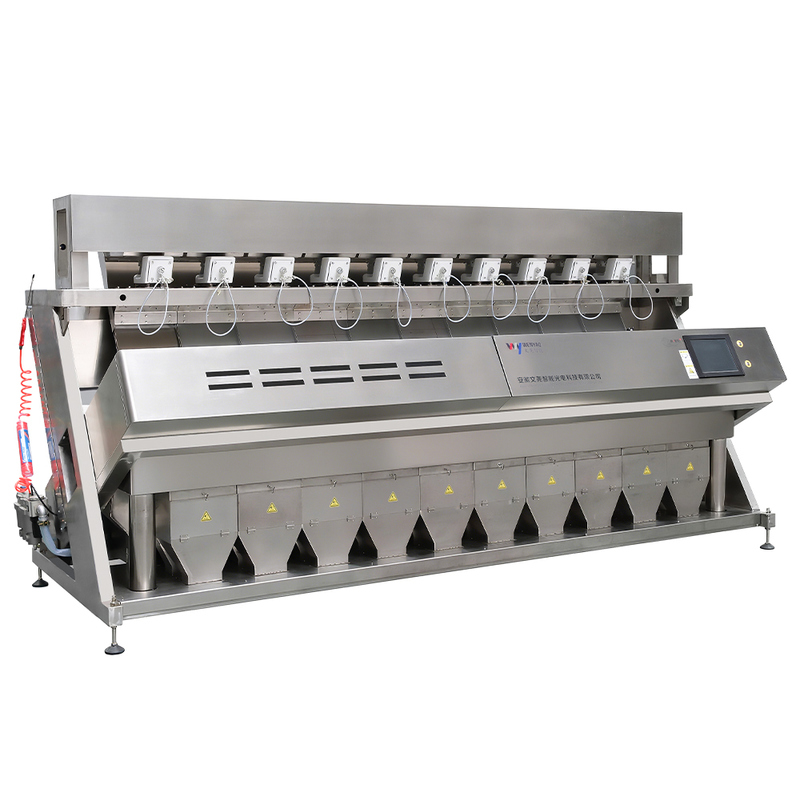

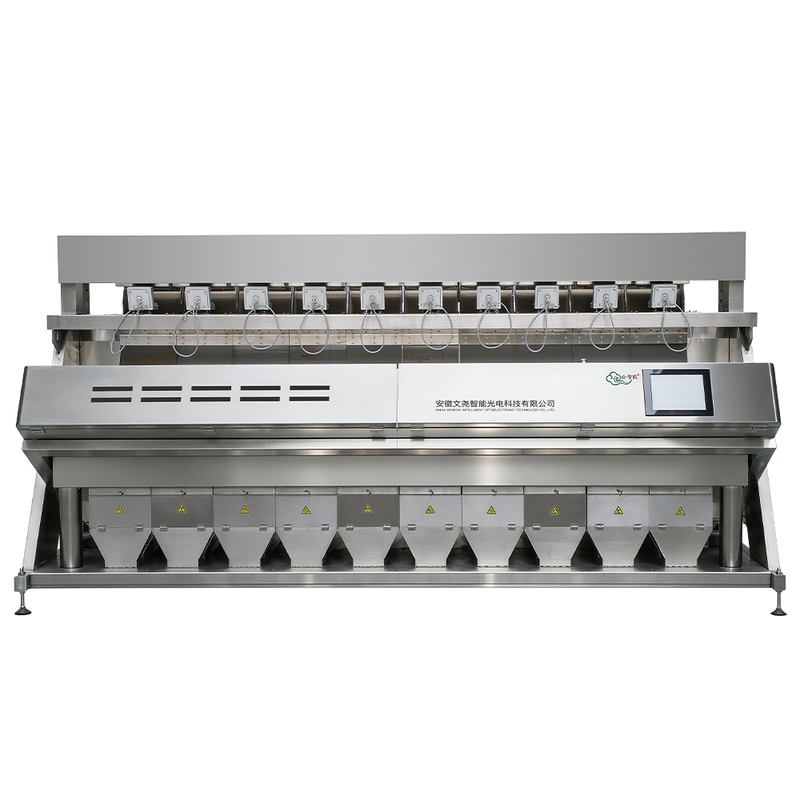

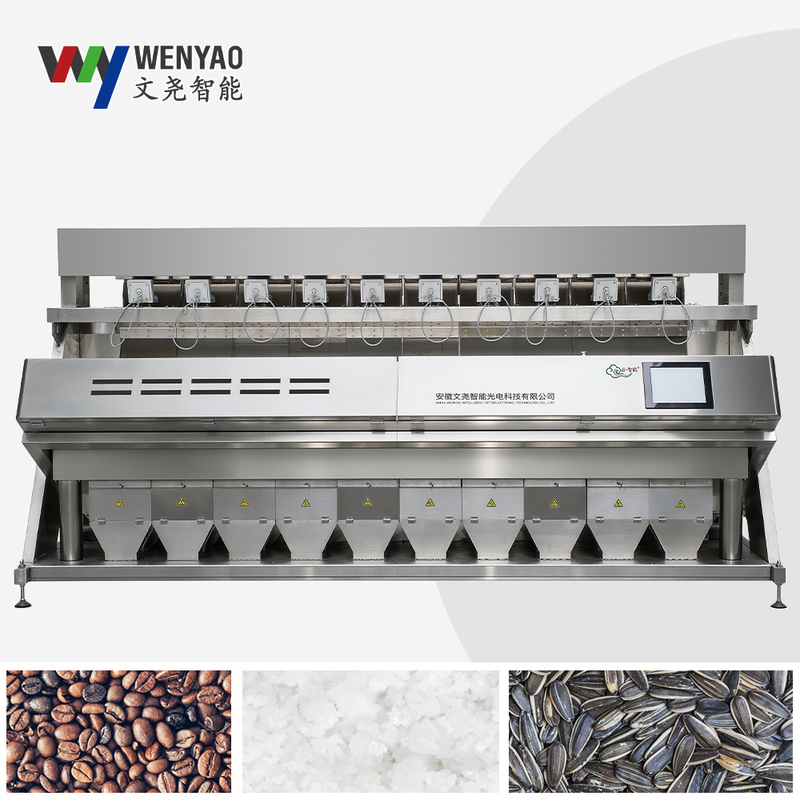

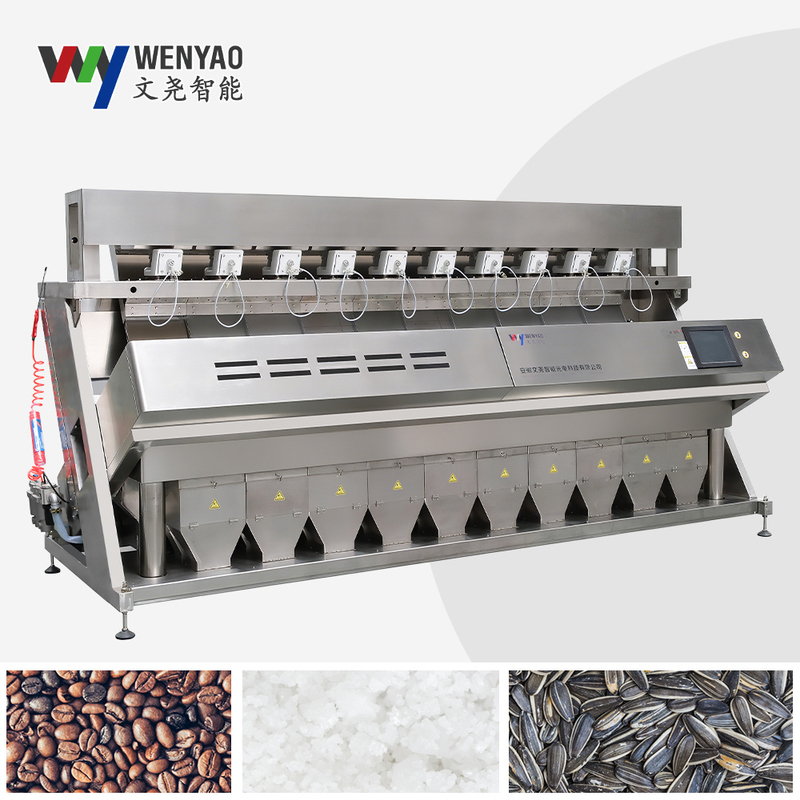

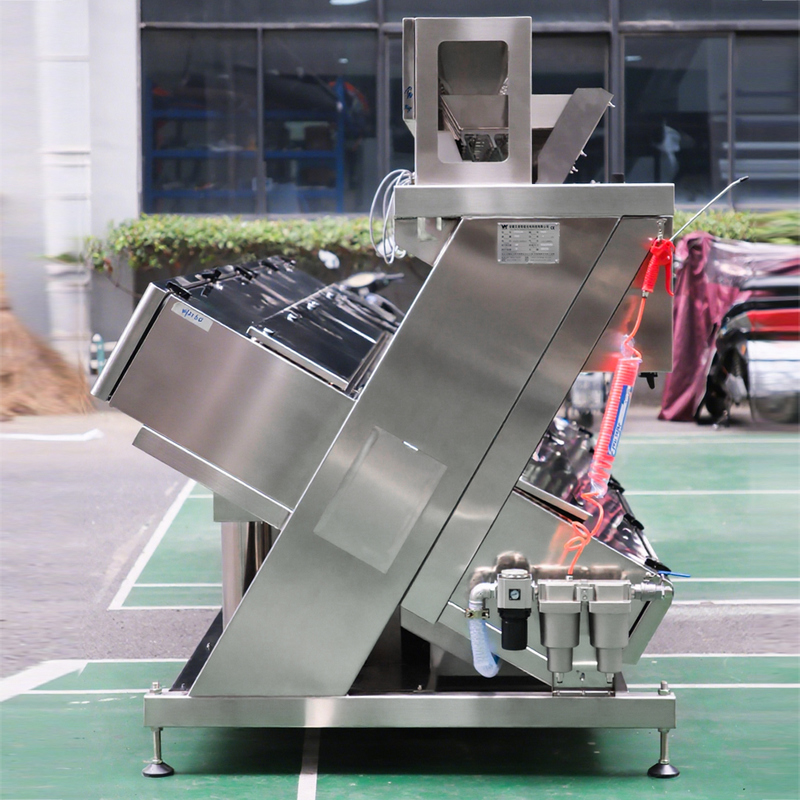

Industrial Separator Realtech NP CCD Ore Color Sorter for Cobble Ore and Salt New & Efficient
Wenyao rice color sorter description:
1) CCD sensor. High definition industrial lens.
2) Human-computer interaction.Image Capture. Holographic Imaging.One-key automation. Automatic System Check.
3)Sorting master .High quality ejector.Intelligent lighting source. Target orientation.
4) Identification expert. Sorting accuracy infinitely close to 99.99%.
5) System Guard. Intelligent algorithm.Automatic rectification. Targeted dedusting.
Wenyao rice color sorter working principle:

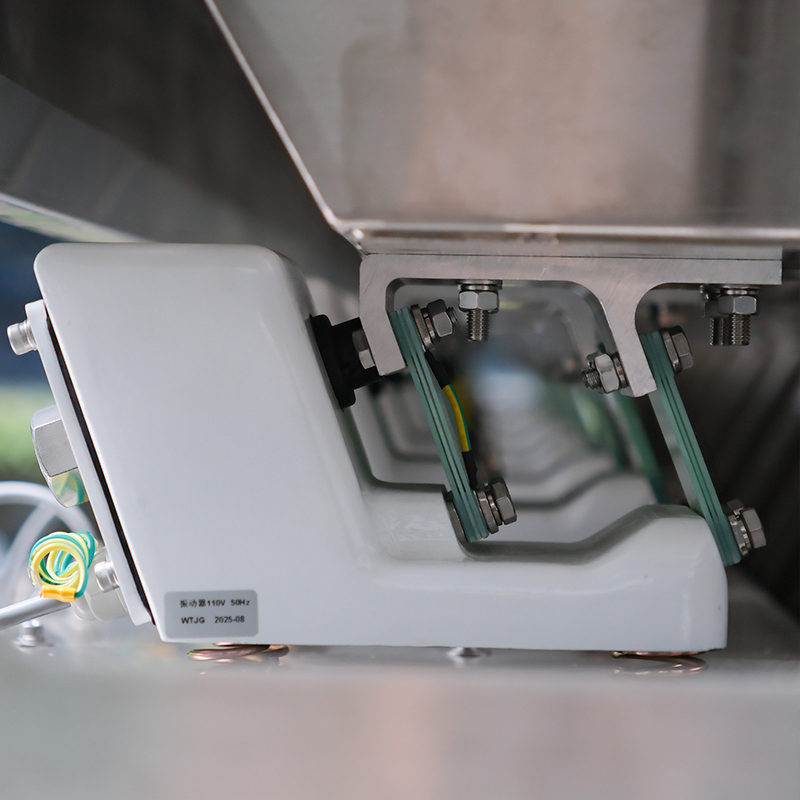

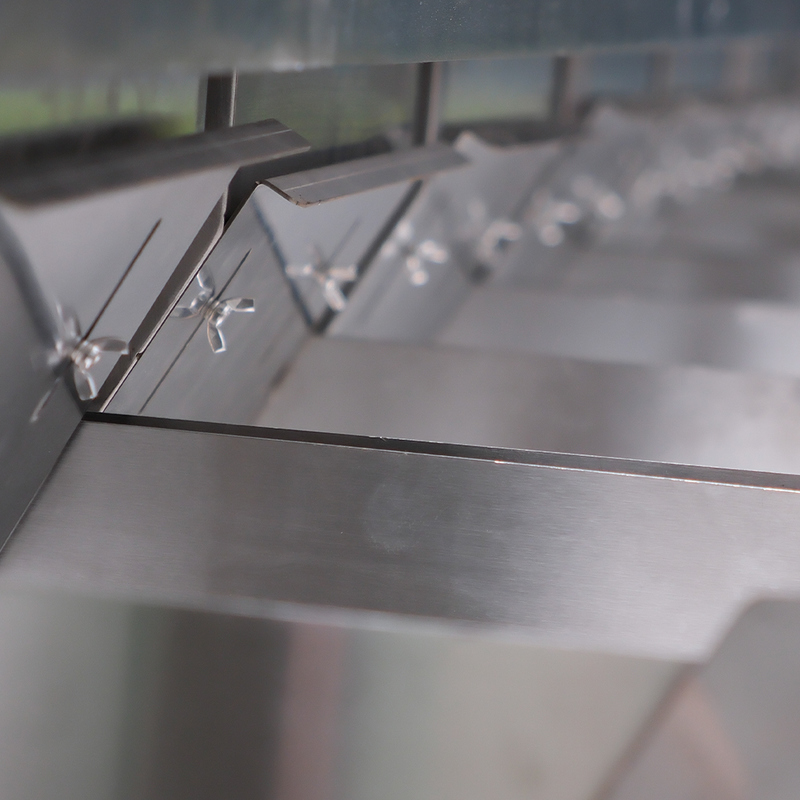

Input product is loaded into the in-feed hopper , it moves along the vibrating plate , until it flows on to a sloping chute, where it is individually checked at 360° and sorted by RGB Full color cameras .
Depending on the signals received by the optical device, the sorter's software controls the pneumatic device, which physically separates the unwanted products out of the conforming ones, which naturally reach their discharging hopper.
Features:
*Latest UHD imaging and analysis technology,high-speed processing,accurate identification
*High level AI self-learning function,one-key automation,user friendly interface,easy operation
*Multi-function,multi-purpose,widely used for rice ,cereal,plastic,chinese medicine
*High and specification ensures high stability,with high sorting accuracy,small carry over and low energy
*Small and portable,saving space and delivery cost,small machine but super function
*Imported ejectors,much smaller air consumption,and much better carry over,esp.good for small materials like quinoa,chia,sesame....
*Option:Remote control by smart terminals like cellphone ,can realize the off-site controls of the accuracy,production capacity and halt of the machines
*Simple Effective-installation&Start-up&Commissioning services;remote teaching and guidance via live video online through internet to worldwide
Technical Parameters:
| MODEL | WYCS10-640 |
| Chutes/Channels | 10/640 |
| Throughput(t/h) | 10-15t/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 6.5kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <5M3/Min |
| Weight | 1800kg |
| Diamension(L*W*H) | 3750*1540*1852mm |
Product application:
Food materials:
Such as: Rice, Wheat, Corn,Oats , Buckwheat,Barley,Cassava,Peanut, Sunflower seeds, Waltnut, Almond, Quinoa, Salt, Medlar, Pistachio, Kidney bean, Chili, Soybean,Red bean, black bean,chickpea,lentil,others.
Plastic materials:
Such as: Waste Plastics, Plastic pellet, Plastic pieces, Plastic granule, Plastic bottle cap flake, PET bottle scrap, ABS plastic flake, PP plastic scrap, Recycled plastic, others.
Mineral materials:
Such as: Quartz stone, Quartz sand, Potassium feldspar, Barite, Calcite, Limestone, Pearl, Marble and others.
Tea leaf materials:
Such as:Black Tea,Green Tea,Herb Tea,Corn Flower
Vegetable and frut:
Such as: Dired Garlic ,Onion, Olive,Coffe Cherry,Jujube ,Dried fish and shrimp
Examples of color sorting:
Core values:
Exceed beyond the visible demand Customization, Dedication, Innovation
FAQ:
1.Q:How long about the guarantee period?
Two years. And we will supply lifelong software upgrade services for our customers.
2.Q:Will you accept L/C as payment?
L/C ,T/T is OK.
3.Q:How about engineers service oversea?
Our engineers could go abroad services when necessary.
4.How about the sample machines for testing?
Sample sending for testing is welcomed. Or you send these three photos, the raw material, good material (which is you want), bad material (which is you want to discard). We send our video to you.
5.Q:How to use the machine?
We will supply the Installation instructions or video and our engineers will train your operators.
6.Can you supply the accessories parts of color sorter?
Yes,we can supply some spare parts when you need.
