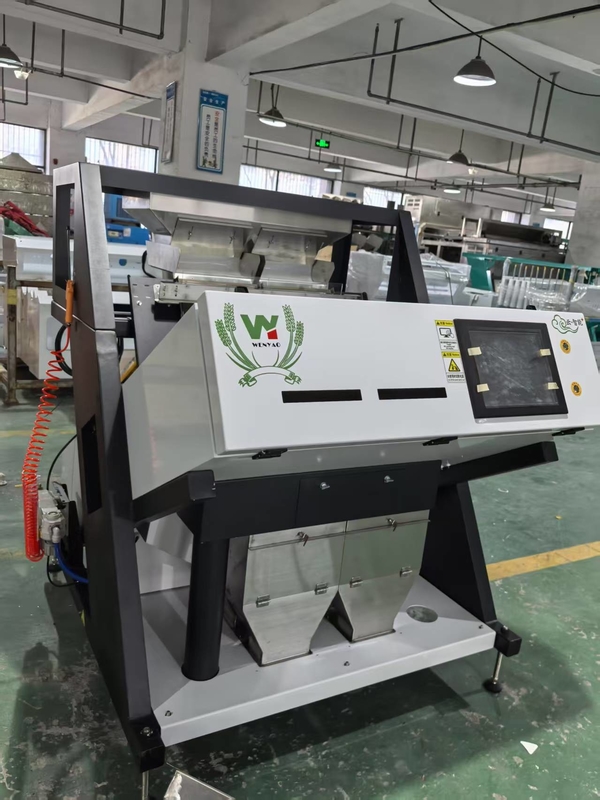

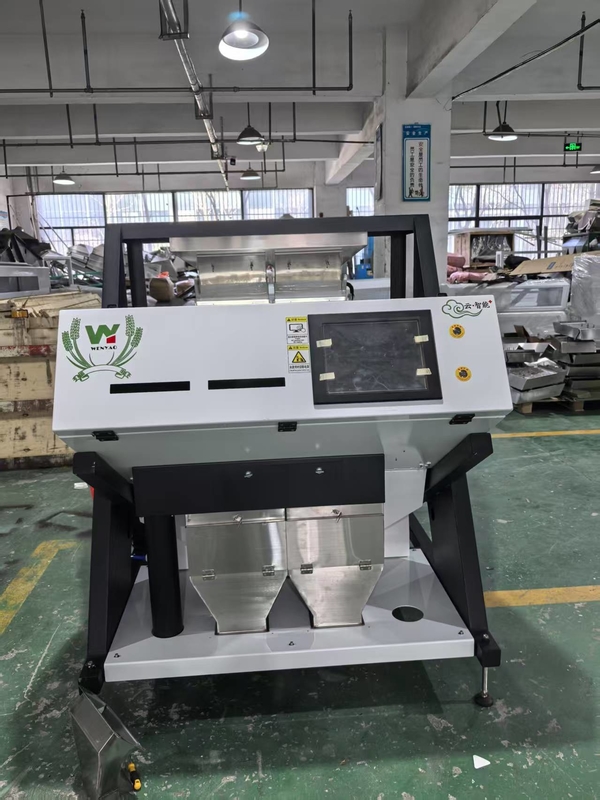

Wenyao CE Certificated Chestnut Color Sorter Machine Pistachio Color Sorting Machine With Good Quality
color sorter is a high-tech product that integrates optics, machinery, electronics, and pneumatics, and has the function of secondary sorting. The basic working principle of the color sorter is to feed the material through the feeder, allowing the material to pass uniformly through the viewing point. The CCD camera captures the color and shape information of the material and sends the data to the data processing unit for image processing and threshold selection. Finally, the defective materials are rejected by high-frequency electromagnetic valves.
PARTS DETAILS:
Color sorters play an important role in the production and processing industry. It improves production efficiency, product quality and sustainable development, and helps enterprises achieve a win-win situation of scientific and technological innovation and economic benefits. With the continuous development of science and technology, the functions and application fields of color sorters will continue to expand, and make greater contributions to industrial upgrading and sustainable development.
Digital Intelligent Wheat Color Sorter Machine
*Optical Sorting Technology With High Resolution 4096 Pixel CCD Camera,High Reliability And Long Life LED Light Source;
*Efficient And Stable Software System,Intelligent Algorithm,User Friendly Interface;
*Installing in Flour milling processing plant with Better Sorting Accuracy, Lower Carryover, And Bigger Production Capacity;
*Wheat Sorting Machine With SOC Platform To Realize Stable, Reliable, Ultra-Fast Mass Data Processing;
*Expert Sorting Solution Realizes One Key Debugging
Technical Parameters:
| MODEL | WYCS2-128 |
| Chutes/Channels | 2/128 |
| Throughput(t/h) | 2-3t/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 1.1kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <1.2M3/Min |
| Weight | 450kg |
| Diamension(L*W*H) | 1250*1535*1832mm |
Examples of color sorting:
CCD Color Sorter Machine
Among them, the photoelectric large bean color sorter is a popular style in the past few years. It is an ordinary photoelectric sensor. At present, the CCD sensor large bean color sorter is the most used in the market, and the maximum resolution is 5400 pixels. Speed line scan CCD
The difference between the photoelectric color sorter and the CCD color sorter lies in the sensor. Because the CCD color sorter uses a high-definition CCD color sorting lens, the color sorting accuracy is improved from 2 square millimeters of the photoelectric color sorter to 0.040. 08 square millimeters, the color sorting accuracy is improved, and the CCD output color sorter is also greatly improved compared with ordinary photoelectric color sorters.
Established in 2007: Have rich experience and strong strength.
Artistic appearance: Original piano frame and artistic design; Arc transition design - beautiful, simple and three-dimensional.
Observation recognition: Original multi-spectral confocal technology; Holographic flash camera; intelligent sorting technology; Low temperature concentrated LED light source; Shape sorting technology; RGB spectrum technology.
Intelligent interconnection: The simplest UI; One button to an intelligent mode; One button to an intelligent mode; Original 4G high-speed online service; Color sorting assistant; Intelligent sorting technology; Intelligent deashing 2.0.
Outstanding output: Deashing of air flow; Deashing of air flow; Self-adaptive feeding.
Intelligent elimination: Self-collaborative sensing technology; Central position elimination technology; High end customized valves.
.
