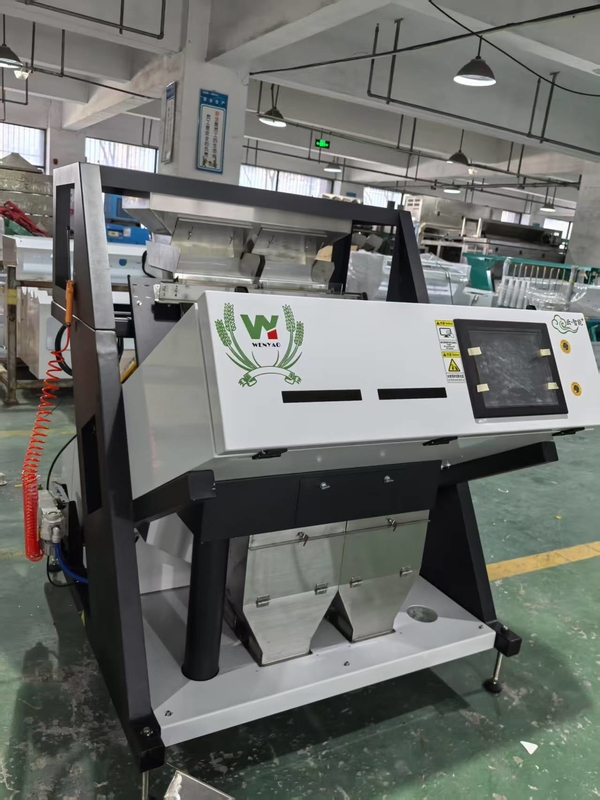

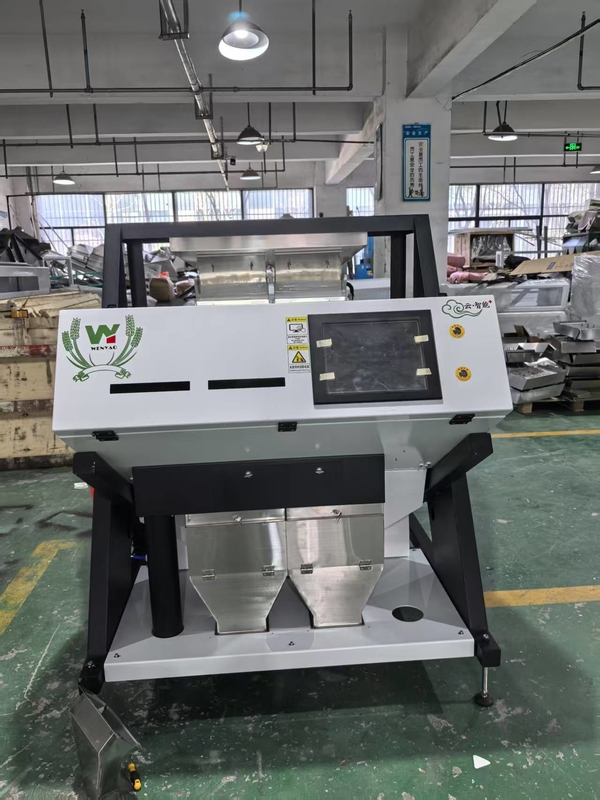

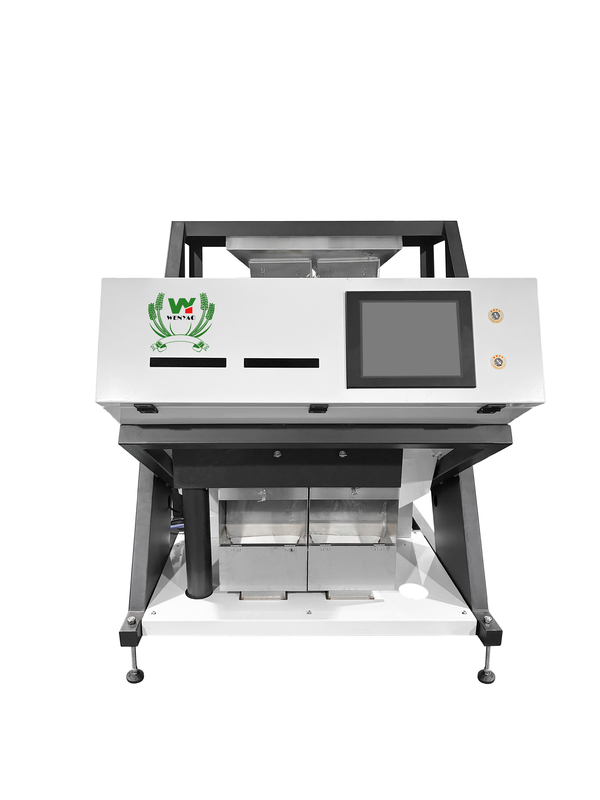

High Quality Lupine Corn Color Sorting Machine Optical Colour Sorter Machine For Beans
Intelligent one-button operation with high sorting accuracy can improve the quality of all kind of beans, such as red bean,white bean,black bean,soya bean ,kidney bean lupine,coffee bean etc, achieve perfect quality control with less effort, and ultra-high consistency,release the burden of beans color sorting.It is your quality choose!
PARTS DETAILS:
Color sorters play an important role in the production and processing industry. It improves production efficiency, product quality and sustainable development, and helps enterprises achieve a win-win situation of scientific and technological innovation and economic benefits. With the continuous development of science and technology, the functions and application fields of color sorters will continue to expand, and make greater contributions to industrial upgrading and sustainable development.
Digital Intelligent Wheat Color Sorter Machine
*Optical Sorting Technology With High Resolution 4096 Pixel CCD Camera,High Reliability And Long Life LED Light Source;
*Efficient And Stable Software System,Intelligent Algorithm,User Friendly Interface;
*Installing in Flour milling processing plant with Better Sorting Accuracy, Lower Carryover, And Bigger Production Capacity;
*Wheat Sorting Machine With SOC Platform To Realize Stable, Reliable, Ultra-Fast Mass Data Processing;
*Expert Sorting Solution Realizes One Key Debugging
Technical Parameters:
| MODEL | WYCS2-128 |
| Chutes/Channels | 2/128 |
| Throughput(t/h) | 2-3t/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 1.1kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <1.2M3/Min |
| Weight | 450kg |
| Diamension(L*W*H) | 1250*1535*1832mm |
Examples of color sorting:
CCD Color Sorter Machine
Among them, the photoelectric large bean color sorter is a popular style in the past few years. It is an ordinary photoelectric sensor. At present, the CCD sensor large bean color sorter is the most used in the market, and the maximum resolution is 5400 pixels. Speed line scan CCD
The difference between the photoelectric color sorter and the CCD color sorter lies in the sensor. Because the CCD color sorter uses a high-definition CCD color sorting lens, the color sorting accuracy is improved from 2 square millimeters of the photoelectric color sorter to 0.040. 08 square millimeters, the color sorting accuracy is improved, and the CCD output color sorter is also greatly improved compared with ordinary photoelectric color sorters.
Feature:
1) High resolution full color camera 5400 CCD sensor. High definition industrial lens.
2) Human-computer interaction. Image Capture. Holographic Imaging. One-key automation. Automatic System Check.
3) Sorting master. High quality ejector.Intelligent lighting source. Target orientation.
4) Identification expert. Size identification. Texture identification. Shape identification. Edge identification. Sorting accuracy
infinitely close to 100%.
5) System Guard. Intelligent algorithm.Automatic rectification. Targeted dedusting.
1. How to use the machine?
We will supply the Installation instructions or video and our engineers will train your operators.
.
